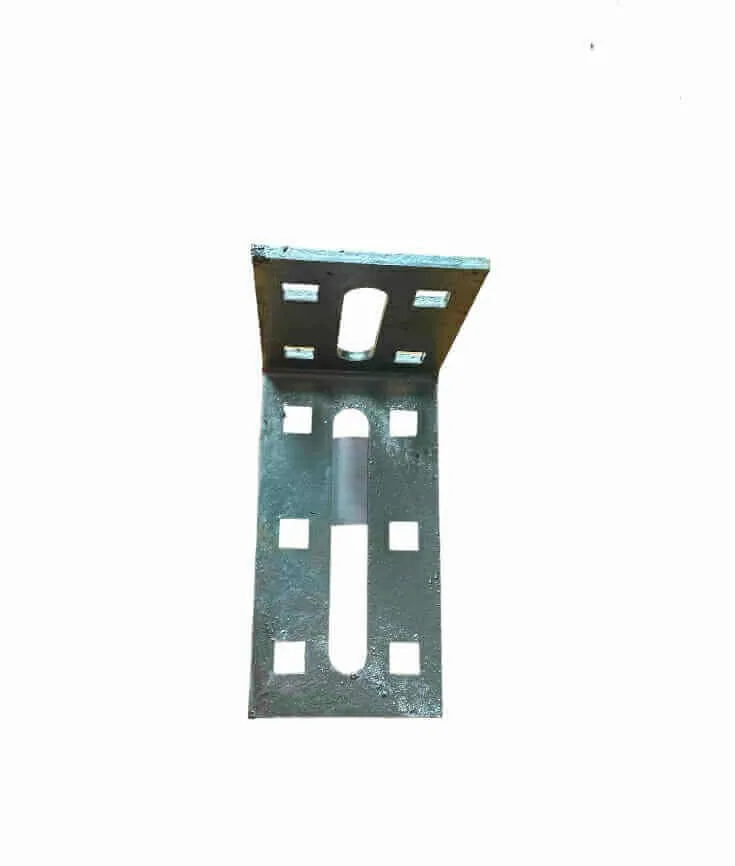

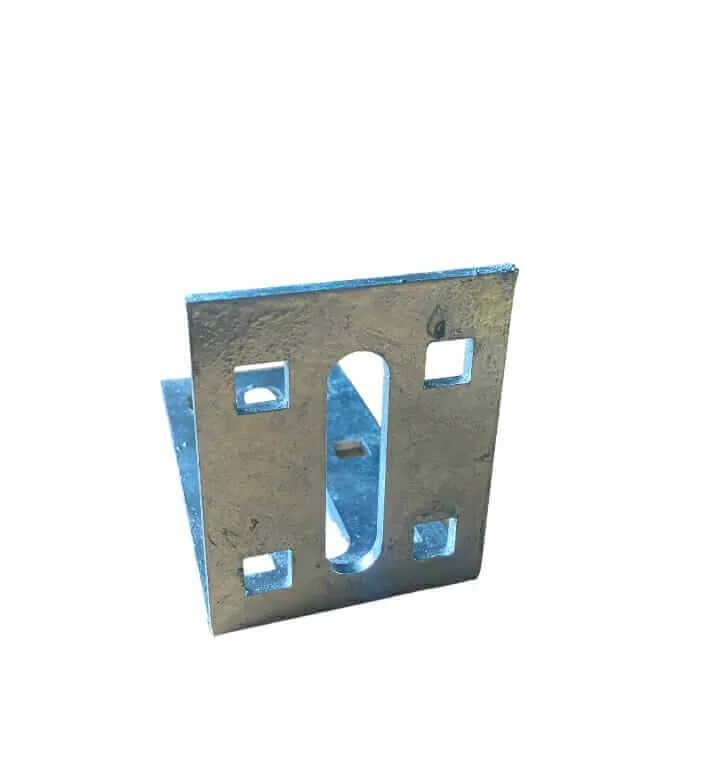

Angle Bracket L 135x90x70 HDG
Item no. 230135Galvanised L-bracket L135x90x70 for connecting timber posts and beams to ground screws. Strong, corrosion-resistant angle connector.
Technical data
| Type | L-shaped angle bracket |
|---|---|
| Dimensions | 135 × 90 × 70 mm |
| Material | Structural steel |
| Coating | Hot-dip galvanised (HDG) |
| Sold as | 1 pcs |
Fastshifter sells through distributors and dealers. Ask for the price list for your market.
Request trade price →Product details
The Angle Bracket L 135 × 90 × 70 mm is a hot-dip galvanised steel angle used to connect timber posts, beams and joists to ground screws and to each other. It gives a rigid, bolted right-angle joint that resists both uplift and lateral movement.
Key features
- Heavy galvanised steel angle — dimensions 135 × 90 × 70 mm.
- Pre-punched holes for bolts, coach screws or structural wood screws.
- Hot-dip galvanised finish for permanent outdoor exposure.
- Connects timber posts and beams to ground screw heads and steel frames.
- Adds stiffness at corners and at every post-to-beam junction.
Where it is used
- Post-to-ground-screw connections on decks, pergolas and carports.
- Beam-to-post and joist-to-beam junctions in timber substructures.
- Stiffening fence posts, screens and garden structures.
- Reinforcing metal joist systems and mixed timber/steel frames.
Fix with structural wood screws or through-bolts sized to the bracket holes. For exposed outdoor joints, use stainless or C4-coated fasteners so the fixing matches the corrosion class of the bracket.
